| 系列 | JK-35WP |
|---|

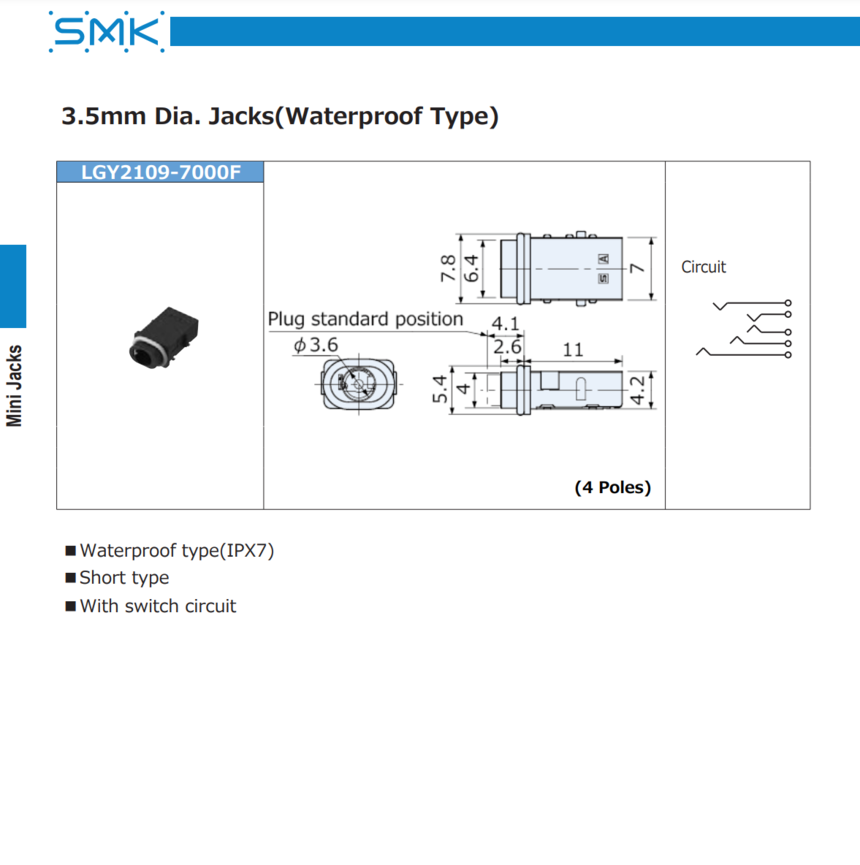

| 系列名称 | 3.5mm Dia. Mini Jack (Waterproof Type) |
|---|
| 产品品号 | LGY2109-7000F |
|---|
| 概要・特长 | 1. Equipped with IPX7 waterproof performance due to its unique structure. 2. Uses an SMT type connector for mounting and can also be mounted on FPC, etc. 3. Includes a 4-pin 1-switch function. Can connect to another signal in addition to L/R sound and GND (ground). 4. More compact and has a lower profile due to its unique structure. 5. Uses a plug-mediated sleeve make-switch system for plug detection, improving contact reliability due to a self-cleaning effect. 6. Country of Origin：China
|
|---|
| 用途 | smartphone, mobile phones, portable audio equipment, other small AV equipment |
|---|
| 基准规格 | － |
|---|
| 外形尺寸 | 长度: 13.6mm 宽度: 7.8mm 高度: 基板取付高さ 4.2mm |
|---|
| 包装形态 | Emboss Taping（800 pcs／reel） |
|---|
